Glass Railing Fascia Mount 46″ – 12 mm

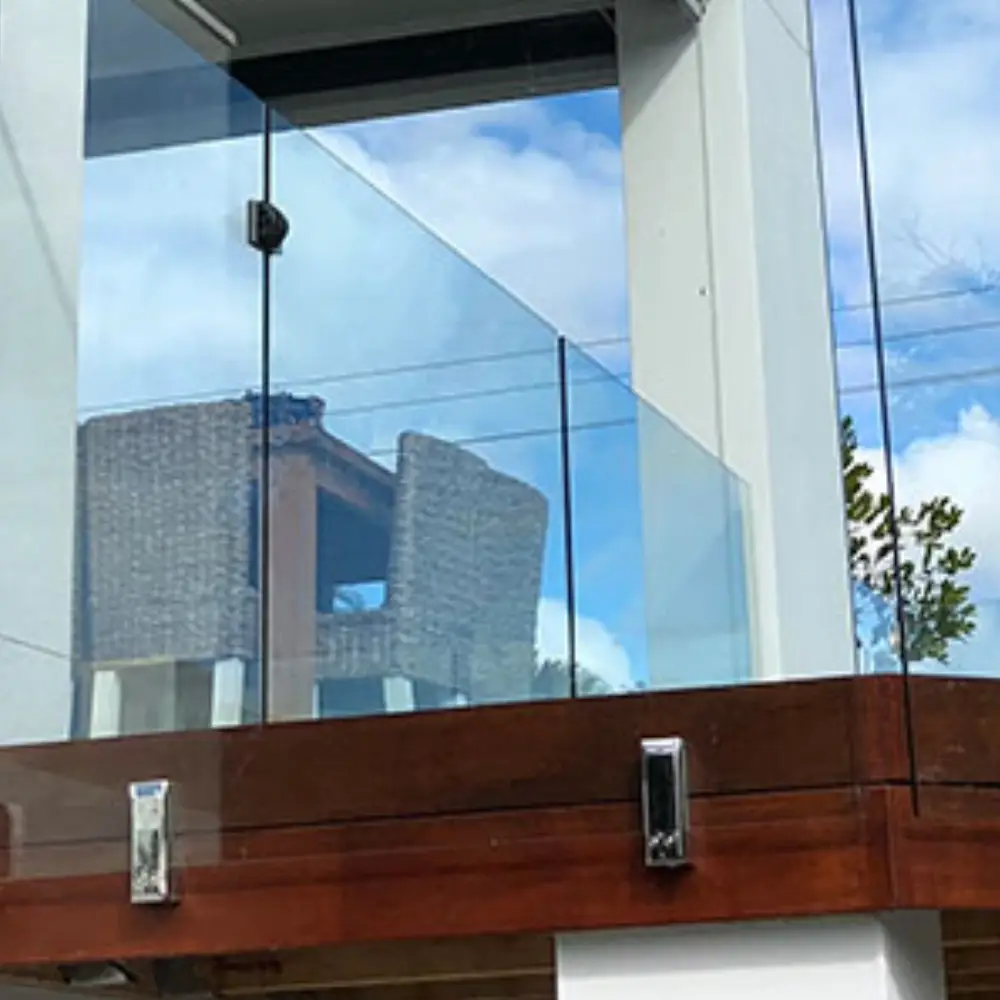

Glass Railing Fascia Mount 46″ – 12 mm is a structural tempered glass panel system designed for fascia-mount (side-mount) installation, offering a full 46″ height barrier using 12 mm (½″) tempered glass. It is suited for balcony edges, decks, stair edges, and poolside glass guardrails, offering clarity, strength, and modern design aesthetics.

Technical Specifications

• Nominal Panel Height: 46″ (glass height)
• Glass Thickness: 12 mm tempered monolithic glass (½″)
• Glass Type: Fully tempered, transparent clear glass meeting standard safety and structural glazing codes
• Mounting Method: Fascia (side) mounting configuration (glass installed into side-mount hardware rather than top-mount spigots)
• Edge Treatment: Polished or chamfered edges (standard for tempered railing glass)
• Load / Safety Ratings: Engineered to support wind and barrier loads per applicable building codes (check local code / RF Transparent specifications)

Key Features & Benefits

• Unobstructed View: Transparent, frameless glazing offers minimal visual interference while maintaining safety
• High Strength Glass: Tempered 12 mm glass provides significant structural capacity for guardrail applications
• Modern Aesthetics: Clean lines, flush glass edges, and invisible mounting hardware (in fascia mount form)
• Weather Durability: Glass is inherently impervious to rain, salt, UV, and general weathering
• Safety Compliance: When installed properly, meets tempered glass safety requirements for barrier systems
• Flexible Sizing: RF Transparent sells 46″ × various widths of 12 mm tempered glass panels.

Applications

• Deck or balcony edge guardrails
• Stair edges or ramps requiring higher guardrail height
• Poolside barriers or glass guardwalls
• Rooftop terraces or building parapet glass barrier systems
• Retrofit projects where fascia mounting is required (i.e. mounting to side of joists or beams)
